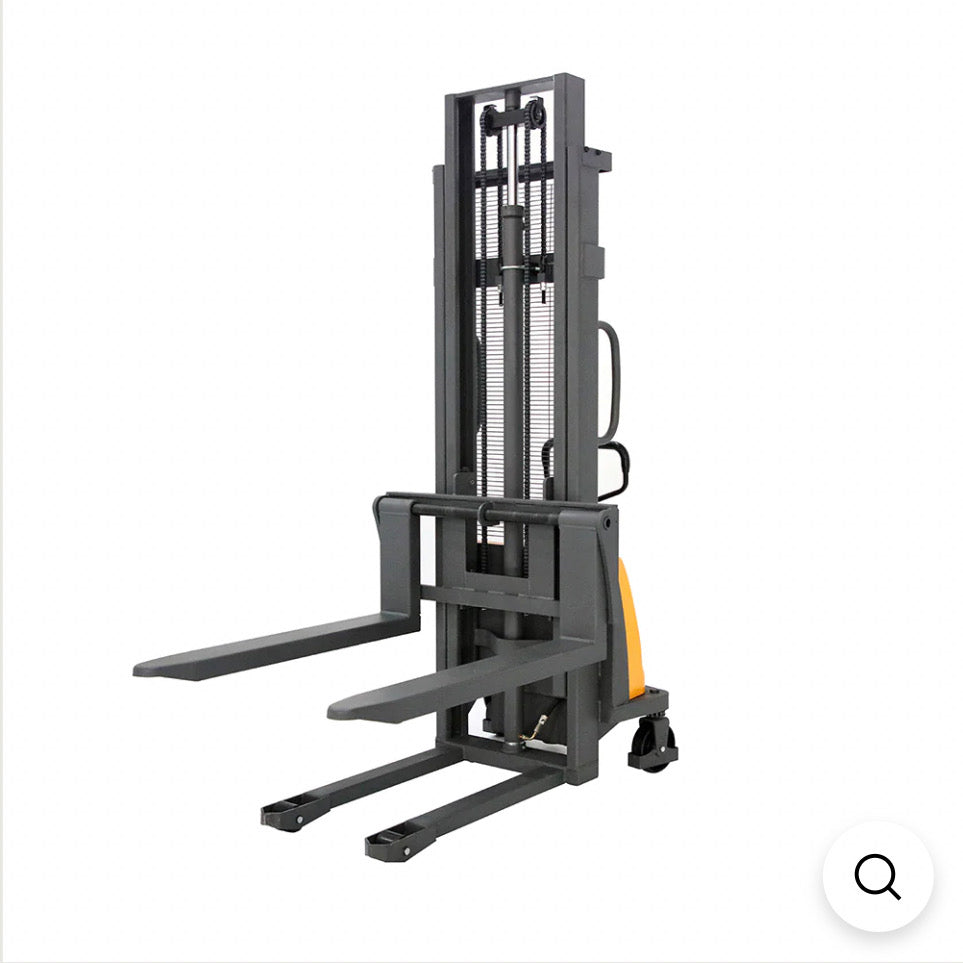

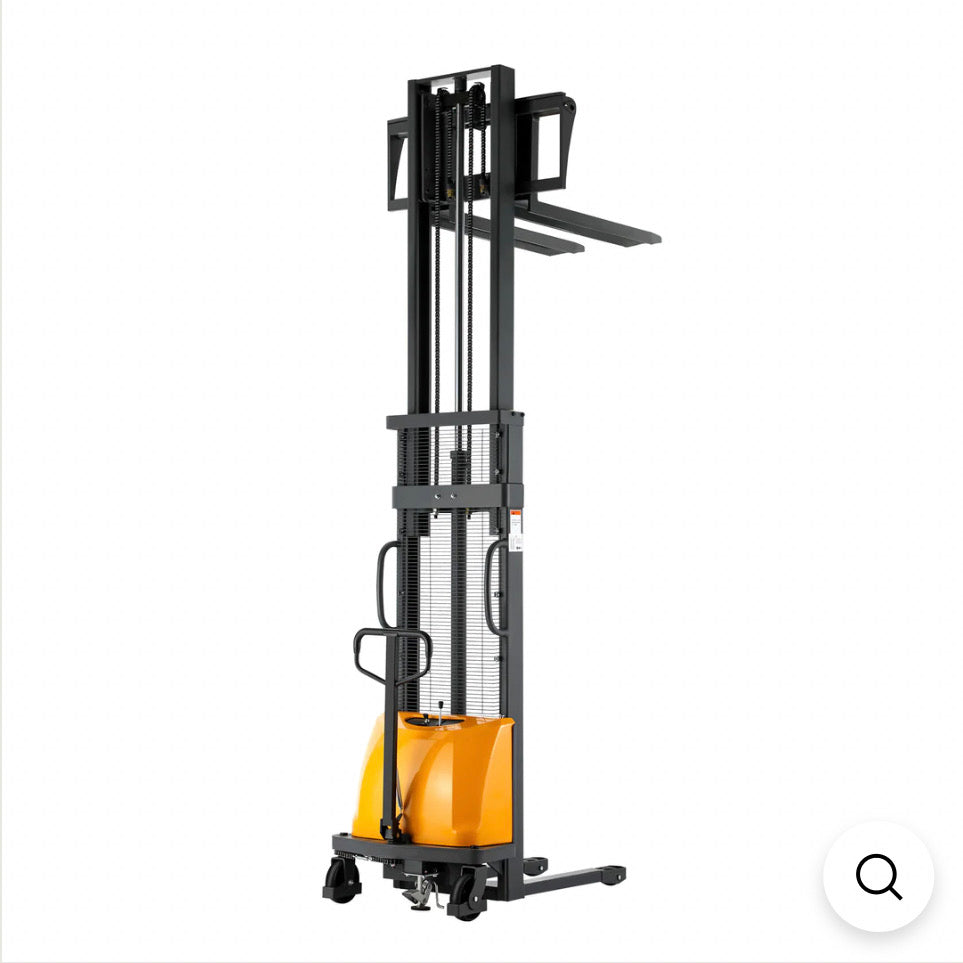

Power Lift Fixed Stacker 3300lbs 118"Lifting

Power Lift Fixed Stacker 3300lbs 118"Lifting

$1,899.00 USD
$3,987.00 USD $1,899.00 USD
Sale Sold out



  • Item Condition: Brand new but Open status without package.
  • This item only accept in-store pick up after in-store inspection by the customer. The stuff is as it is in-Store.

    • MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING



      • 1,500-watt lift motor.
      • Special chain steering system.
      • Easy operation for lifting and lowering.
      • Strong battery with 12V/120AH capacity and over charge design.

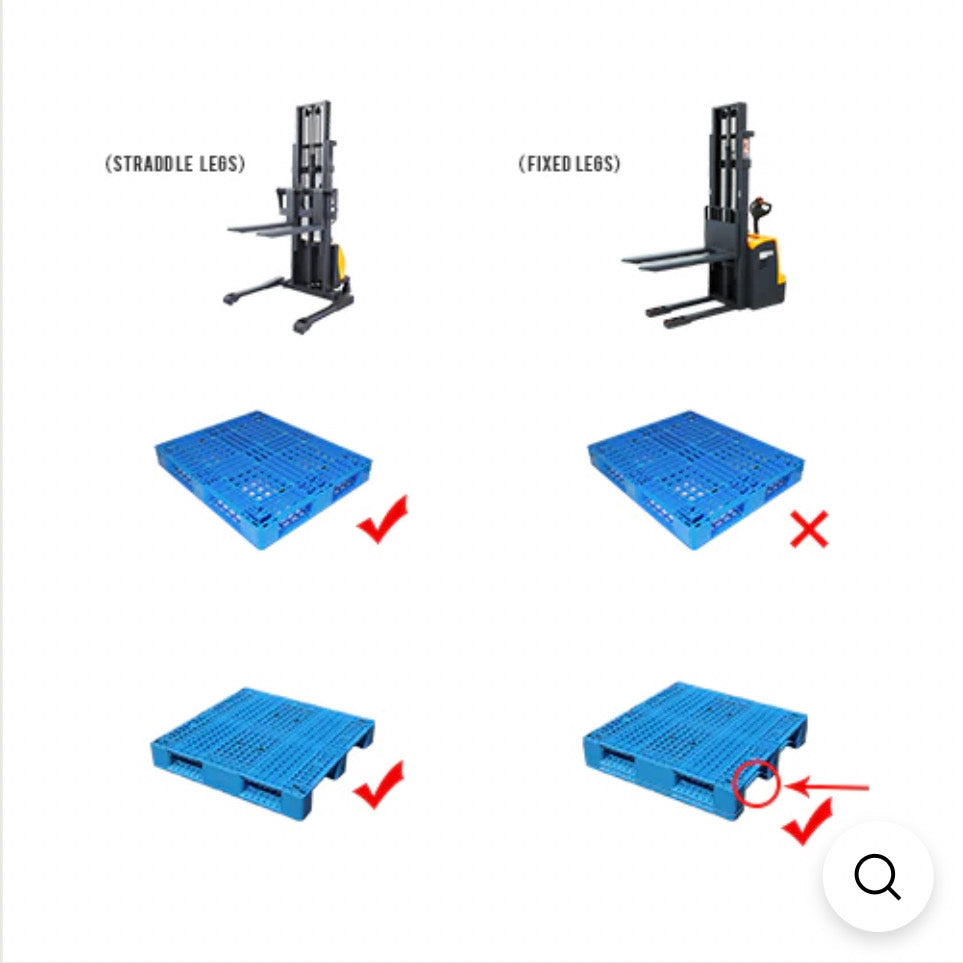

      • Adjustable forks & fix legs.

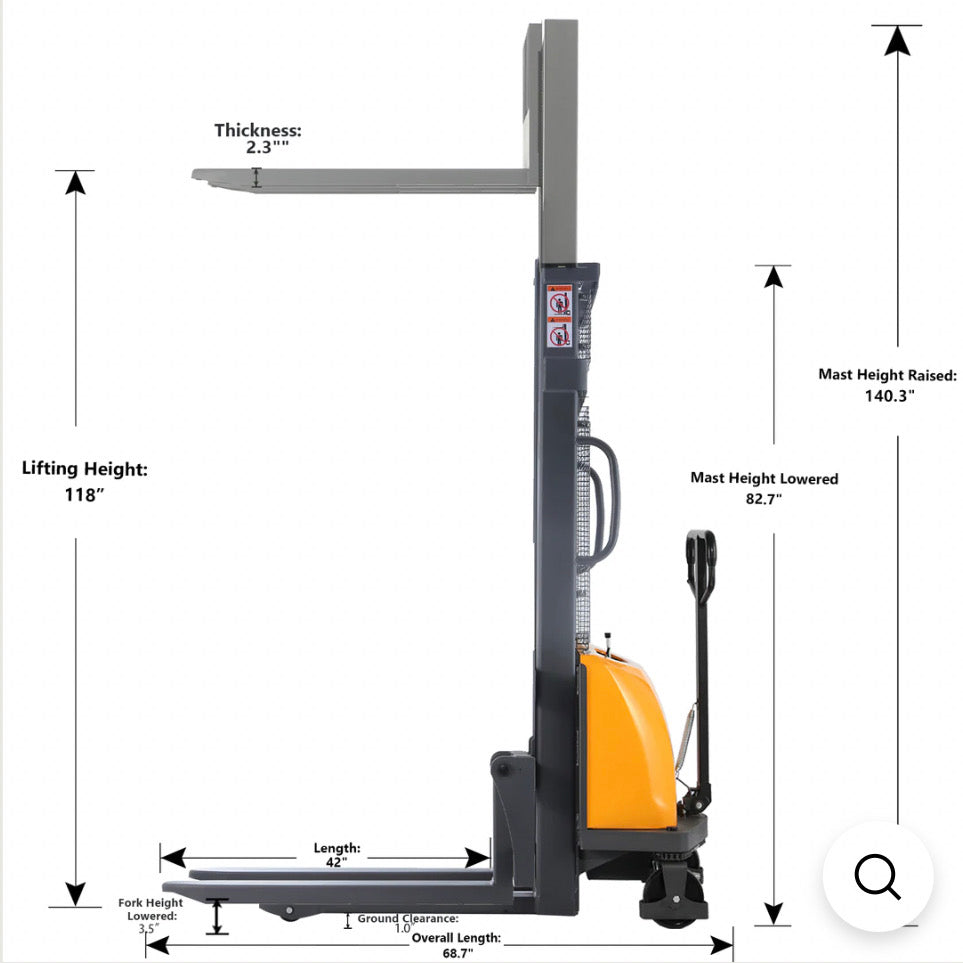

    • DIMENSIONS:

      • Overall Length：68.7"
      • Overall Width: 37.8''
      • Recommended Aisle Width：90"
      • Turning Radius: 56"
      • Mast Height Lowered: 82.7''
      • Mast Height Raised: 140.3''
      • Load Center: 15.7"
      • Wheel Diameter : 7''/3.15''

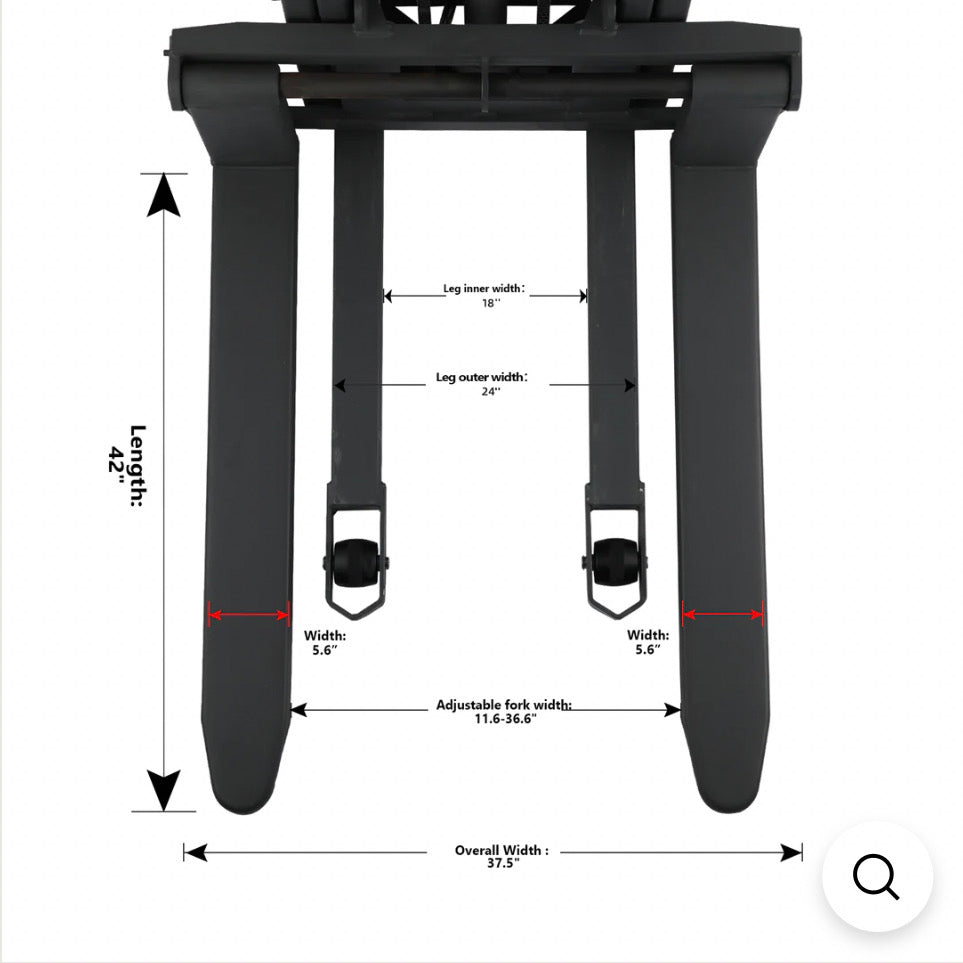

      FORKS:

      • Fork height, Lowered: 3.5''
      • Thickness: 2.3''
      • Width: 5.6''
      • Length: 42''
      • Adjustable fork width 11.8-36.6''

      FEATURES:

      • Foot pedal brake for safety and ramp usage.
      • Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
      • With hydraulic leveler control lifting and lowering, speed is adjustable.

      SPEED:

      • Lifting speed(laden/unladen) : 2/3.2mph
      • Lowering speed(laden/unladen) : 3.9/3.5mph

      SPECIFICATIONS:

      • Not explosion proof.
      • This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
      • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
      • Fully charge battery before use to avoid damaging cells.
      • Charger plugs into standard 110V-120V outlets.
      • Charge the truck once a month even it's not in use.
